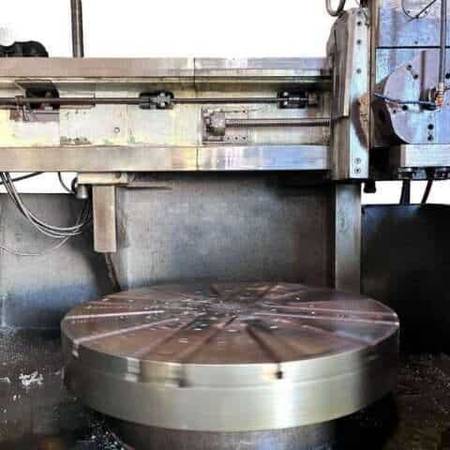

Gray Ringmaster 60″ CNC Vertical Boring Mill – VTL#112332
condition:
good
make / manufacturer:
GRAY
model name / number:
RINGMASTER 60″
size / dimensions:
154″ x 156″ x 162″ High
QR Code Link to This Post
Features:

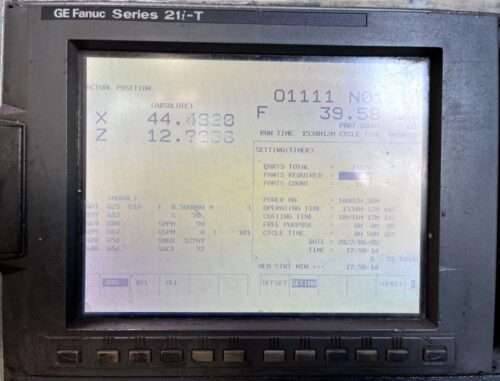

Fanuc 21i-T CNC Control
75 HP Spindle Motor
MPG Control
RS-232 Port
Coolant System
60" 4-Jaw Chuck
5 Station Turret
Kennametal Tool Holding System KM-80 Tool Holders
Vertical Ram
Chip Conveyor
Gray Ringmaster 60" Specifications:
Max Turning Diameter: 60″
Max Turning Height: 62″
Maximum Height Under Rail: 70″
Vertical Ram Travel: 36″
Vertical Turret Travel on Rail: 30″
Horizontal Turret Travel on Rail: 56"
Max Swing: 64″
Table Load Capacity: lbs
Table Speeds: 4 - 22 - 75 RPM
General:
Power Source: 220 V, Three Phase, 60 Hz
Dimensions: 154″ x 156″ x 162″ High
Weight : 40,000 lbs Approx.
Call or message us if you are interested.
