Mori Seiki NL2500SMC/700 CNC Turning Center #112789
condition:
good
make / manufacturer:
Mori Seiki
model name / number:
NL2500SMC/700
size / dimensions:
122″ x 78.7 ″ x 83.5″ High
QR Code Link to This Post
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

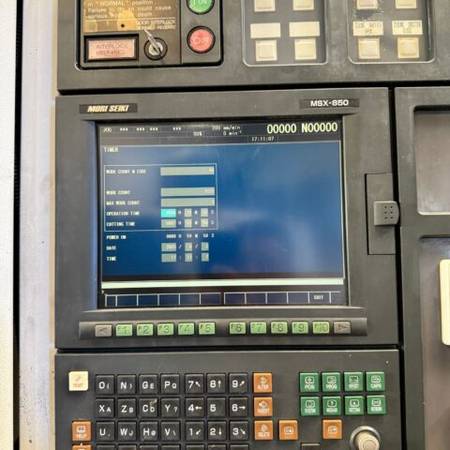

Mori Seiki MSX-850 CNC Control
25 HP Spindle Power
PCMCIA Card Slot
Rigid Tapping
Coolant System
Soul C-63366 Collet Chuck on Main Spindle (Capable 10″ Chuck)

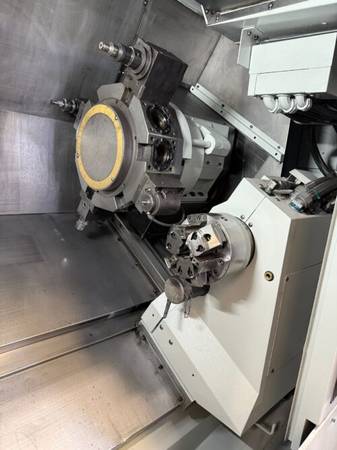

Soul Woodworth UBL-8 6-Jaw Chuck on Sub Spindle
C Axis Capable
12 Station High Speed Live Tool Turret
Tool Presetter
Chip Conveyor
Foot Switches
Books & Manuals
Levelling Pads

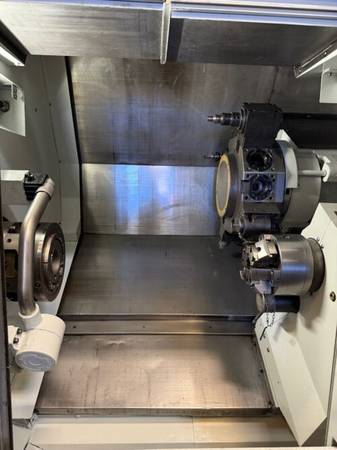

Live & Statics Tool Holders (Mounted on Turret as shown in the images)
Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
B Axis Travel (Sub Spindle): 28.9″
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Call or message us if you are interested.
