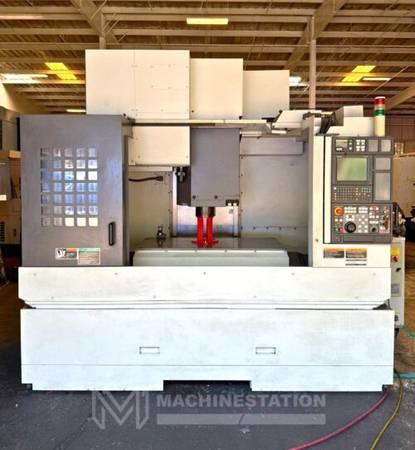

Mori Seiki NVD5000 α1B/40 CNC Vertical Machining Center #112804
condition:
good
make / manufacturer:
Mori Seiki
model name / number:
NVD5000 α1B/40
size / dimensions:
110″ L X 108″ W X 102″ High
QR Code Link to This Post
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
MSX-501III ( FANUC ) CNC Control
30 Station Automatic Tool Changer
25 HP high torque Spindle Motor
Rigid Tapping
Coolant System
Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Table:
Length: 52.0″
Width: 23.6″
Max Weight on Table: 2640 lbs
Spindle:
Taper Size: BT-40
Speed Range: 20,000 RPM
Spindle Power: 25 HP
Feed Rate:
Rapid X, Y & Z: 787 inch/PM
Cutting Feed rate: 787 inch/PM

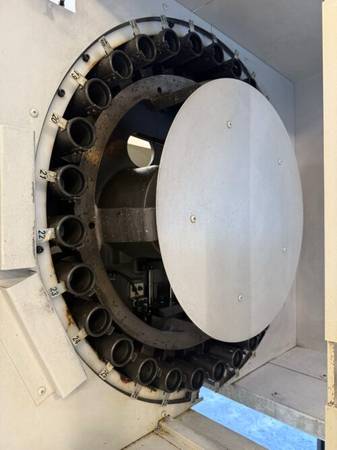

Automatic Tool Changer:
BT-40 Taper
Capacity: 30
Max Tool Weight: 17.6 lbs
Call or message us if you are interested.
